O.E.M.
Mitsubishi 4G93
I-4cyl 1.8L 16v DOHC (RPRH/RPRH)
intake
exhaust
camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 261°
257°
duration @ 1.0mm
: 209°
204°
valve lift
: 9.70mm
9.50mm
cam lift
: 5.60mm
5.50mm
lobe angle
: 110°
110°
timing @ 1.0mm
: -7° / 36°
33° / -9°
valve lift @ TDC
: 0.50mm
0.45mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#

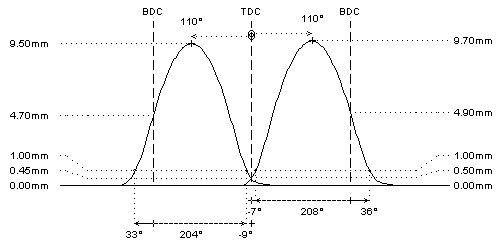

The exact valve timing data of the original camshafts are not known. Valve timing data are illustrated on estimated peak angle of 110°. The actual valve timing and corresponding lift at TDC may be different.
