sport
Mitsubishi 4G63 evo 1-2-3
I-4cyl 2.0L 16v DOHC (RPRH/RPRH)
Save to PDF
intake
exhaust

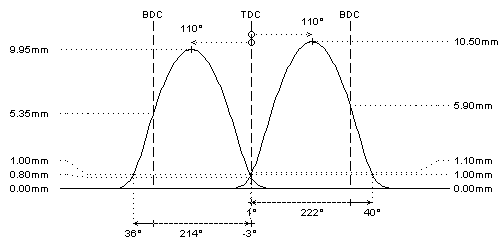

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 265°
255°
duration @ 1.0mm
: 221°
213°
valve lift
: 10.50mm
9.95mm
cam lift
: 6.05mm
5.75mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 1° / 40°
36° / -3°
valve lift @ TDC
: 1.10mm
0.80mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 28kg @ 39.5mm
: 32kg @ 38.5mm
max. load / lift
: 82kg @ 11.5mm
: 82kg @ 10.5mm
REMARKS :
REMARKS :
#
"type 1" steel billet camshafts for Mitsubishi 4G63 DOHC engines (Lancer evo 1-2-3):
- engine fitted left / gearbox right (driver's point of view)
- ignition drive on intake camshaft with M8 bolt
#
negative radius cam design for improved midrange torque
