O.E.M.
Volvo B6294T
I-6cyl 2.9L 24v DOHC
intake
exhaust

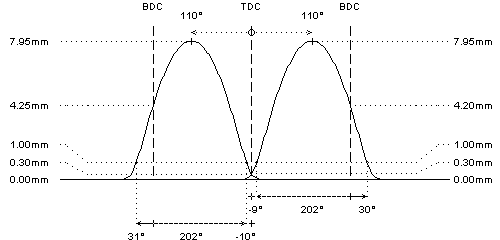

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 235°
235°
duration @ 1.0mm
: 201°
201°
valve lift
: 7.95mm
7.95mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -9° / 30°
31° / -10°
valve lift @ TDC
: 0.30mm
0.30mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
Please double check before ordering:
- axial thrust width: 4.5mm
- cam base diameter: 32mm
- hydraulic cam followers
- no VVT
