Toyota 4A-FE 2nd gen
I-4cyl 1.6L 16v DOHC (DTs/DTs)
intake
exhaust

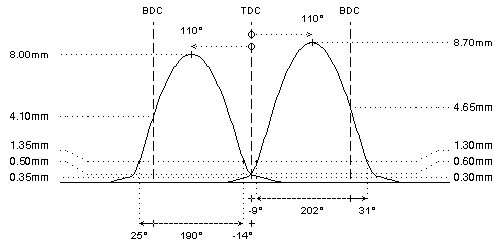

camshaft data:
lash ramp
: 0.30mm
0.35mm
duration @ 0.1mm
: 236°
223°
duration @ 1.0mm
: 202°
191°
valve lift
: 8.70mm
8.00mm
cam lift
: 8.70mm
8.00mm
lobe angle
: 110°
110°
timing @ 1.0mm
: -9° / 31°
25° / -14°
valve lift @ TDC
: 0.60mm
0.50mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 18kg @ 31.3mm
: 18kg @ 31.3mm
max. load / lift
: 40kg @ 9.0mm
: 40kg @ 9.0mm
REMARKS :
REMARKS :
#
camshafts for 2nd generation 4A-FE engines. Please check following dimensions before ordering:
- cam base diameter: 34.0mm
- cam follower diameter: 31.0mm
- shim diameter: 28.0mm (between cam and follower)
