O.E.M.
Renault J7R, J7T
I-4cyl 2.0L 12v SOHC (RP/RP)
intake
exhaust

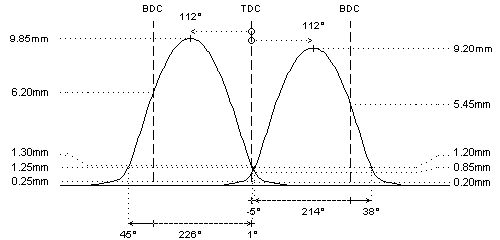

camshaft data:
lash ramp
: 0.20mm
0.25mm
duration @ 0.1mm
: 256°
268°
duration @ 1.0mm
: 213°
226°
valve lift
: 9.20mm
9.85mm
cam lift
: 4.45mm
4.85mm
lobe angle
: 112°
112°
timing @ 1.0mm
: -5° / 38°
45° / 1°
valve lift @ TDC
: 0.85mm
1.30mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 28kg @ 34.5mm
: 28kg @ 34.5mm
max. load / lift
: 0kg @ 11.0mm
: 0kg @ 11.0mm
REMARKS :
REMARKS :
