O.E.M.
Renault 804 / 812 Alpine A110, R8 Gordini
I-4cyl 1.3L 8v OHV (FT/FT)
Save to PDF
intake
exhaust

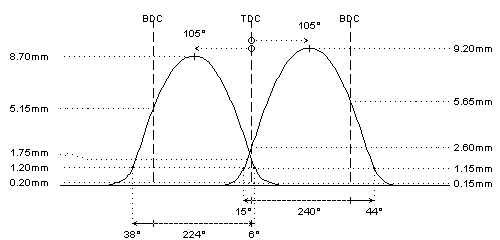

camshaft data:
lash ramp
: 0.15mm
0.20mm
duration @ 0.1mm
: 279°
267°
duration @ 1.0mm
: 239°
224°
valve lift
: 9.20mm
8.70mm
cam lift
: 5.75mm
5.45mm
lobe angle
: 105°
105°
timing @ 1.0mm
: 15° / 44°
38° / 6°
valve lift @ TDC
: 2.60mm
1.75mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
- cam lobe sequence: IE-IE-IE-IE (crossflow head)
- total length: 384mm
- double chain
- journal diameters: 37.94 - 37.94 - 37.94 - 37.94mm
- available in steel billet only
#
std camshaft specifications for RENAULT R8 Gordini 1300 / ALPINE A110 1300G (R-1135)
