2290106
hot street - dirt track
Ford Zeta 1.8 - 2.0L, hydro (silvertop)
I-4cyl 2.0L 16v DOHC (DTH/DTH)
intake
exhaust

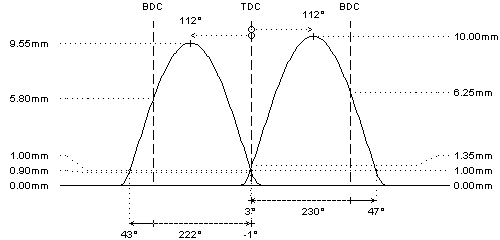

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 256°
250°
duration @ 1.0mm
: 230°
222°
valve lift
: 10.00mm
9.55mm
cam lift
:
lobe angle
: 112°
112°
timing @ 1.0mm
: 3° / 47°
43° / -1°
valve lift @ TDC
: 1.35mm
0.90mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
PAC-S90015
:
PAC-S90015
interior spring
fitted load / length
: 33kg @ 37.0mm
: 33kg @ 37.0mm
max. load / lift
: 79kg @ 12.0mm
: 79kg @ 12.0mm
REMARKS :
REMARKS :
#
for 1st generation engines with hydraulic tappets, single groove valves and cylindrical valve springs (until '97)
#
ECU reprogramming required
