2290111
sport
Ford Zeta 1.8 - 2.0L, hydro (silvertop)
I-4cyl 2.0L 16v DOHC (DTH/DTH)
intake
exhaust

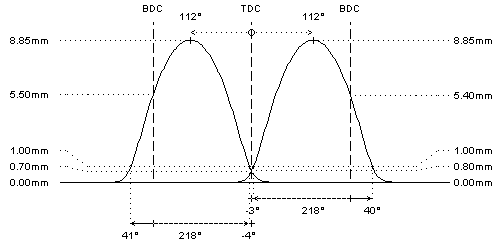

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 264°
264°
duration @ 1.0mm
: 217°
217°
valve lift
: 8.85mm
8.85mm
cam lift
:
lobe angle
: 112°
112°
timing @ 1.0mm
: -3° / 40°
41° / -4°
valve lift @ TDC
: 0.80mm
0.70mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 20kg @ 37.0mm
: 20kg @ 37.0mm
max. load / lift
: 57kg @ 9.0mm
: 57kg @ 9.0mm
REMARKS :
REMARKS :
#
for 1st generation engines with hydraulic tappets, single groove valves and cylindrical valve springs (until '97)
