O.E.M.
Ford modular 2v
V-6cyl 4.0L 12v SOHC (RPRH/RPRH)
intake
exhaust

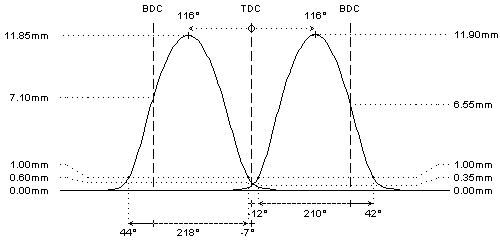

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 278°
284°
duration @ 1.0mm
: 210°
217°
valve lift
: 11.90mm
11.85mm
cam lift
: 6.60mm
6.55mm
lobe angle
: 116°
116°
timing @ 1.0mm
: -12° / 42°
44° / -7°
valve lift @ TDC
: 0.35mm
0.60mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 32kg @ 36.0mm
: 33kg @ 35.3mm
max. load / lift
: 100kg @ 12.5mm
: 100kg @ 12.3mm
REMARKS :
REMARKS :
#
steel billet camshafts
