O.E.M.
Citroën ES9J4S / XFX 206hp, VVT in
V-6cyl 2.9L 24v DOHC (DTH/DTH)
intake
exhaust

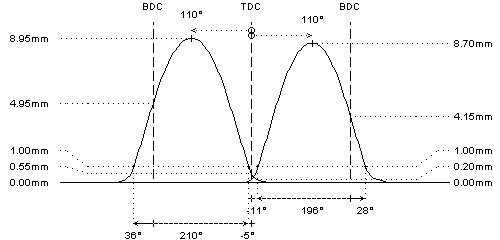

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 245°
258°
duration @ 1.0mm
: 197°
211°
valve lift
: 8.70mm
8.95mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -11° / 28°
36° / -5°
valve lift @ TDC
: 0.20mm
0.55mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 25kg @ 36.3mm
: 25kg @ 36.3mm
max. load / lift
: 52kg @ 9.5mm
: 52kg @ 9.5mm
REMARKS :
REMARKS :
#
The original VVT system can be fitted on these camshafts. However, we strongly suggest to limit the range or disable the VVT system (see remarks).
