O.E.M.
Citroën XU10J4 (RFY) 150hp
I-4cyl 2.0L 16v DOHC (DTH/DTH)
intake
exhaust

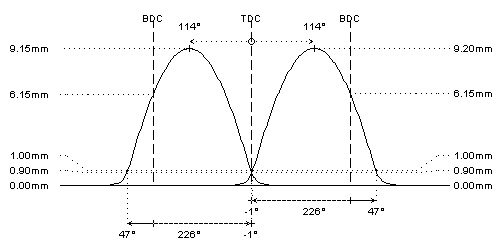

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 278°
278°
duration @ 1.0mm
: 226°
226°
valve lift
: 9.20mm
9.15mm
cam lift
:
lobe angle
: 114°
114°
timing @ 1.0mm
: -1° / 47°
47° / -1°
valve lift @ TDC
: 0.90mm
0.90mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 40kg @ 39.0mm
: 40kg @ 39.0mm
max. load / lift
: 98kg @ 10.8mm
: 98kg @ 10.8mm
REMARKS :
#
green colored OE springs accept valve lift of 10.8mm at maximum
REMARKS :
#
The exhaust camshafts have a sleeve and internal oil supply to fit the servo pump (direct drive)
