4901133
sport
Citroën TU24 205 Rallye
I-4cyl 1.3L 8v SOHC (RP/RP)
Save to PDF
intake
exhaust

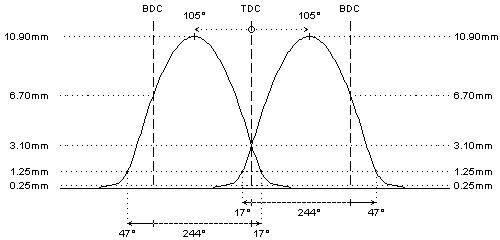

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 282°
282°
duration @ 1.0mm
: 244°
244°
valve lift
: 10.90mm
10.90mm
cam lift
: 7.05mm
7.05mm
lobe angle
: 105°
105°
timing @ 1.0mm
: 17° / 47°
47° / 17°
valve lift @ TDC
: 3.10mm
3.10mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 31kg @ 40.5mm
: 31kg @ 40.5mm
max. load / lift
: 93kg @ 11.0mm
: 93kg @ 11.0mm
REMARKS :
REMARKS :
#
- bearing diameters: 42.42 - 41.82 - 41.23 - 40.62 - 36.92mm (small bearings)
- 8mm valves
#
a) engine TU24, 8mm valve stem (205 Rally): springs [ref. PAC-S99843] on retainers [ref. 99377]
b) other TU engines, 7mm valve stem: springs [ref. PAC-S10011] on retainers [ref. 99316]
#
FIA G.N. sheet nr. 5453ET (106 XSI 1587cc) / 5505 (106 Rallye 1294cc) /5561 (106 Rallye 1587cc).
When ordering please indicate if camshaft must meet all homologation measures
