2501615
hot street - dirt track
Honda B16A
I-4cyl 1.6L 16v DOHC (RP/RP)
Save to PDF
intake
exhaust

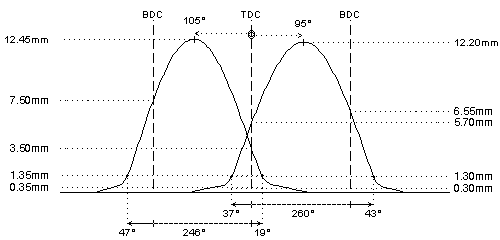

camshaft data:
lash ramp
: 0.30mm
: 0.35mm
duration @ 0.1mm
: 313°
(257-257)
: 304°
(253-253)
duration @ 1.0mm
: 260°
(216-216)
: 246°
(212-212)
valve lift
: 12.20mm
(11.20-11.20)
: 12.45mm
(11.35-11.35)
cam lift
: 7.65mm
(7.25-7.25)
: 7.75mm
(7.35-7.35)
lobe angle
: 95°
(98-98)
: 105°
(108-108)
timing @ 1.0mm
: 37° / 43°
: 47° / 19°
valve lift @ TDC
: 5.70mm
(2.80-2.80)
: 3.50mm
(1.30-1.30)
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99375/s
: View 99375/s
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: View PAC-E99861
: View PAC-E99861
interior spring
: View PAC-I99861
: View PAC-I99861
fitted load / length
: 30kg @ 31.3mm
: 28kg @ 31.8mm
max. load / lift
: 97kg @ 12.0mm
: 95kg @ 12.0mm
REMARKS :
REMARKS :
#
Any warranty regarding camshaft wear is excluded, unless the rocker arms have been reconditioned by Catcams.
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
#
data for COUNTER CLOCKWISE turning engine (as OEM)
