2505102
sport
Honda J30A4
V-60°-6cyl 3.0L 24v SOHC
intake
exhaust

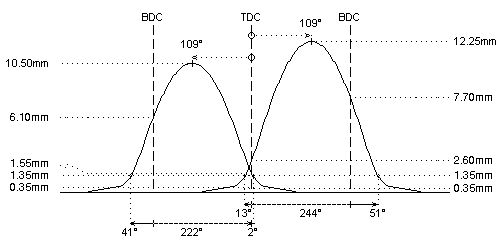

camshaft data:
lash ramp
: 0.33mm
: 0.35mm
duration @ 0.1mm
: 298°
(238)
: 272°
(272)
duration @ 1.0mm
: 244°
(184)
: 223°
(223)
valve lift
: 12.25mm
(9.00)
: 10.50mm
(10.50)
cam lift
: 7.35mm
(5.35)
: 6.55mm
(6.55)
lobe angle
: 109°
(109)
: 109°
(109)
timing @ 1.0mm
: 13° / 51°
: 41° / 2°
valve lift @ TDC
: 2.60mm
(0.55)
: 1.55mm
(1.55)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
99446/s
:
99446/s
lower retainer
:
99447/O
:
99447/O
exterior spring
:
PAC-S90013
:
PAC-S90013
interior spring
fitted load / length
: 24kg @ 34.0mm
: 24kg @ 34.0mm
max. load / lift
: 71kg @ 12.0mm
: 71kg @ 12.0mm
REMARKS :
REMARKS :
#
ECU reprogramming required
