4013301
sport
Mercedes M133.980 A45 AMG
I-4cyl 2.0L 16v DOHC
intake
exhaust

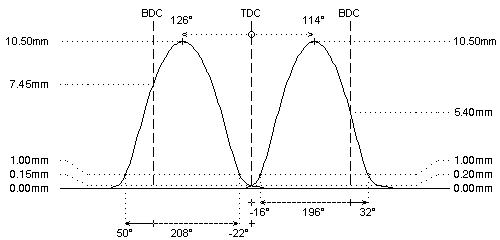

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 252°
264°
duration @ 1.0mm
: 196°
208°
valve lift
: 10.50mm
10.50mm
cam lift
: 5.30mm
5.30mm
lobe angle
: 114° (74°)
126° (86°)
timing @ 1.0mm
: -16° / 32°
50° / -22°
valve lift @ TDC
: 0.20mm (4.24mm)
0.15mm (3.21mm)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 29kg @ 35.9mm
: 28kg @ 36.3mm
max. load / lift
: 67kg @ 10.7mm
: 65kg @ 10.7mm
REMARKS :
REMARKS :
#
billet steel cams including cam trigger wheels
