4013304
tarmac rally - race
Mercedes M133.980 A45 AMG
I-4cyl 2.0L 16v DOHC
intake
exhaust

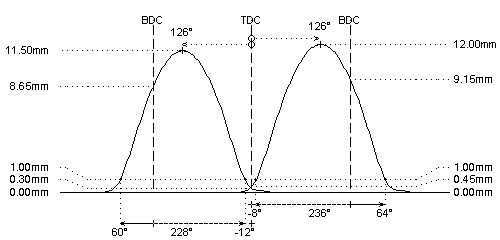

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 292°
284°
duration @ 1.0mm
: 236°
228°
valve lift
: 12.00mm
11.50mm
cam lift
: 6.06mm
5.80mm
lobe angle
: 126° (86°)
126° (86°)
timing @ 1.0mm
: -8° / 64°
60° / -12°
valve lift @ TDC
: 0.45mm (5.21mm)
0.30mm (4.61mm)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
99650/S
:
99650/S
lower retainer
:
99649/O
:
99649/O
exterior spring
:
PAC-E99864
:
PAC-E99864
interior spring
:
PAC-I99864
:
PAC-I99864
fitted load / length
: 35kg @ 32.0mm
: 35kg @ 34.9mm
max. load / lift
: 85kg @ 12.0mm
: 85kg @ 12.0mm
REMARKS :
REMARKS :
#
billet steel cams including cam trigger wheels
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
