Ford HXJA Ti-VCT
I-4cyl 1.6L 16v DOHC (DTx/DTx)
Save to PDF
intake
exhaust

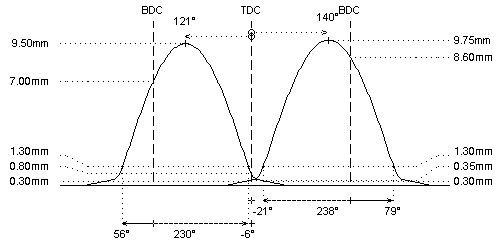

camshaft data:
lash ramp
: 0.30mm
0.30mm
duration @ 0.1mm
: 274°
266°
duration @ 1.0mm
: 238°
230°
valve lift
: 9.75mm
9.50mm
cam lift
: 9.75mm
9.50mm
lobe angle
: 140° (88°)
121° (64°)
timing @ 1.0mm
: -21° / 79°
56° / -6°
valve lift @ TDC
: 0.35mm (4.63mm)
0.80mm (6.58mm)
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
#
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
#
check std valve spring setup for coil bind length and use valve spring kit if required
