Ford HXJA Ti-VCT
I-4cyl 1.6L 16v DOHC (DTx/DTx)
intake
exhaust

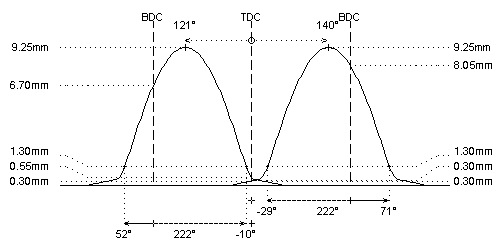

camshaft data:
lash ramp
: 0.30mm
0.30mm
duration @ 0.1mm
: 258°
258°
duration @ 1.0mm
: 222°
222°
valve lift
: 9.25mm
9.25mm
cam lift
: 9.25mm
9.25mm
lobe angle
: 140° (88°)
121° (64°)
timing @ 1.0mm
: -29° / 71°
52° / -10°
valve lift @ TDC
: 0.30mm (3.84mm)
0.55mm (6.25mm)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
