Honda L15B1 130hp
I-4cyl 1.5L 16v DOHC (RPR/RPR)
Save to PDF
intake
exhaust

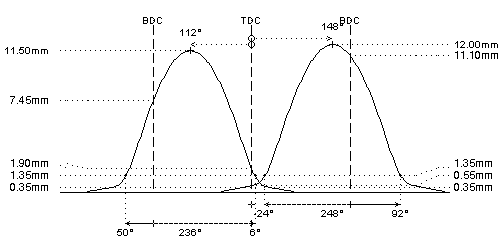

camshaft data:
lash ramp
: 0.35mm
0.35mm
duration @ 0.1mm
: 316°
276°
duration @ 1.0mm
: 248°
236°
valve lift
: 12.00mm
11.50mm
cam lift
: 6.65mm
6.50mm
lobe angle
: 148° (98°)
112°
timing @ 1.0mm
: -24° / 92°
50° / 6°
valve lift @ TDC
: 0.55mm (4.31mm)
1.90mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99595/s
: View 99595/s
lower retainer
: View 99596/O
: View 99596/O
exterior spring
: View PAC-E99865
: View PAC-E99865
interior spring
: View PAC-I99865
: View PAC-I99865
fitted load / length
: 30kg @ 31.0mm
: 34kg @ 30.0mm
max. load / lift
: 72kg @ 12.0mm
: 74kg @ 11.5mm
REMARKS :
REMARKS :
#
VTEC profile on outer cam lobes
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
#
Check workshop manual for advised valve clearance.
