5505001
sport
Renault D4F
I-4cyl 1.1L 16v SOHC (RPR/RPR)
intake
exhaust

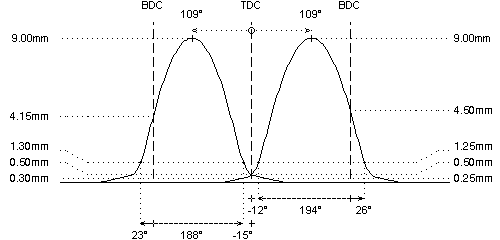

camshaft data:
lash ramp
: 0.25mm
0.28mm
duration @ 0.1mm
: 236°
244°
duration @ 1.0mm
: 194°
188°
valve lift
: 9.00mm
9.00mm
cam lift
: 4.65mm
4.90mm
lobe angle
: 109°
109°
timing @ 1.0mm
: -12° / 26°
23° / -15°
valve lift @ TDC
: 0.50mm
0.50mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 17kg @ 33.8mm
: 17kg @ 33.8mm
max. load / lift
: 47kg @ 9.5mm
: 47kg @ 9.5mm
REMARKS :
REMARKS :
