REMARKS :
#

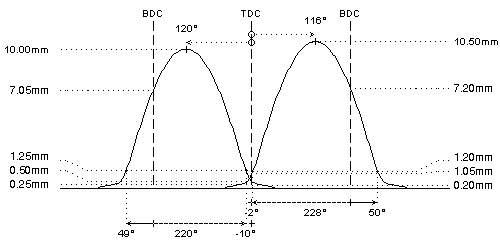

steel billet camshafts for use in EG33 engine:
- exhaust camshafts driven by belt
- intake camshafts driven by internal meshed gear
MORE PROFILE OPTIONS ON REQUEST
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
for TURBO conversion (atmospheric to turbo)
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
