sport
Bmw M52 B20 150hp, vanos in
I-6cyl 2.0L 24v DOHC (DTH/DTH)
Save to PDF
intake
exhaust

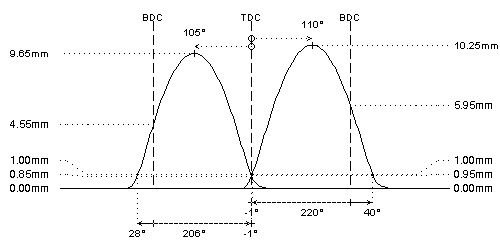

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 254°
238°
duration @ 1.0mm
: 219°
207°
valve lift
: 10.25mm
9.65mm
cam lift
:
lobe angle
: 110°
105°
timing @ 1.0mm
: -1° / 40°
28° / -1°
valve lift @ TDC
: 0.95mm
0.85mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 0kg @ 37.0mm
: 0kg @ 37.0mm
max. load / lift
: 0kg @ 10.1mm
: 0kg @ 10.1mm
REMARKS :
REMARKS :
#
- steel billet camshafts
#
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
#
check std valve spring setup for coil bind length and use valve spring kit if required
#
STD cam profile of US version S52B32
