O.E.M.
Citroën XU5J (180A)
I-4cyl 1.6L 8v SOHC (DT/DT)
intake
exhaust

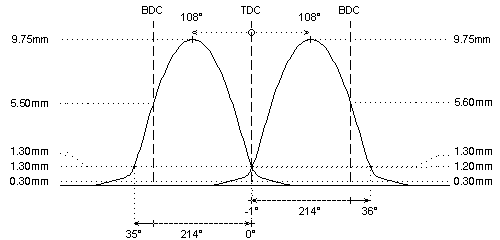

camshaft data:
lash ramp
: 0.30mm
0.30mm
duration @ 0.1mm
: 276°
276°
duration @ 1.0mm
: 215°
215°
valve lift
: 9.75mm
9.75mm
cam lift
:
lobe angle
: 108°
108°
timing @ 1.0mm
: -1° / 36°
35° / -0°
valve lift @ TDC
: 1.20mm
1.30mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 42kg @ 39.8mm
: 44kg @ 39.3mm
max. load / lift
: 85kg @ 12.0mm
: 85kg @ 11.5mm
REMARKS :
REMARKS :
#
with fuel pump lobe
