4003615
sport
Mercedes M113.987 .987 .988 .989
V-8cyl 5.4L 24v SOHC (RPRH/RPRH)
Save to PDF
intake
exhaust

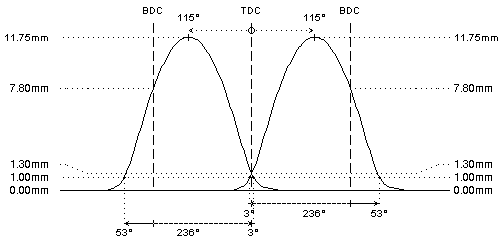

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 298°
298°
duration @ 1.0mm
: 236°
236°
valve lift
: 11.75mm
11.75mm
cam lift
: 8.20mm
8.20mm
lobe angle
: 115°
115°
timing @ 1.0mm
: 3° / 53°
53° / 3°
valve lift @ TDC
: 1.30mm
1.30mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99572
: View 99572
lower retainer
: View 99593/O
: View 99593/O
exterior spring
: View PAC-E92009
: View PAC-E92009
interior spring
: View PAC-I92009
: View PAC-I92009
fitted load / length
: 35kg @ 34.0mm
: 35kg @ 34.0mm
max. load / lift
: 104kg @ 14.0mm
: 104kg @ 14.0mm
REMARKS :
#
machining of cylinder head required
REMARKS :
#
OEM data for M113.987 .988 .989
camshaft partnumber:
A113 050 89 01
A113 050 90 01
#
ECU reprogramming required
