4003614
sport
Mercedes M113.987 .987 .988 .989
V-8cyl 5.4L 24v SOHC (RPRH/RPRH)
intake
exhaust

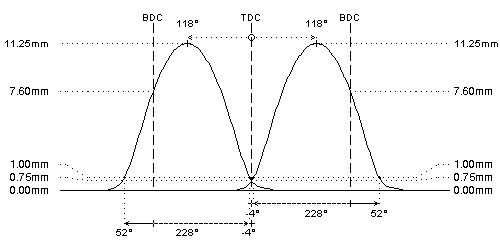

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 290°
290°
duration @ 1.0mm
: 228°
228°
valve lift
: 11.25mm
11.25mm
cam lift
: 7.85mm
7.85mm
lobe angle
: 118°
118°
timing @ 1.0mm
: -4° / 52°
52° / -4°
valve lift @ TDC
: 0.75mm
0.75mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
:
O.E.M.
:
O.E.M.
fitted load / length
: 46kg @ 38.8mm
: 46kg @ 38.8mm
max. load / lift
: 114kg @ 11.5mm
: 114kg @ 11.5mm
REMARKS :
REMARKS :
#
OEM data for M113.987 .988 .989
camshaft partnumber:
A113 050 89 01
A113 050 90 01
