4000406
sport
Mercedes M103.980
I-6cyl 3.0L 12v SOHC (RP/RP)
intake
exhaust

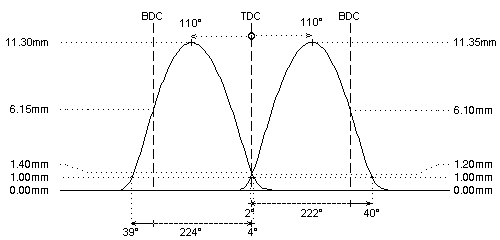

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 260°
262°
duration @ 1.0mm
: 222°
223°
valve lift
: 11.35mm
11.30mm
cam lift
: 7.65mm
7.65mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 2° / 40°
39° / 4°
valve lift @ TDC
: 1.20mm
1.40mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
INFO
:
INFO
exterior spring
:
PAC-E19859
:
PAC-E19859
interior spring
:
PAC-I19859
:
PAC-I19859
fitted load / length
: 44kg @ 33.5mm
: 44kg @ 33.5mm
max. load / lift
: 118kg @ 13.0mm
: 118kg @ 13.0mm
REMARKS :
#
Remove lower spring retainer and replace by shim to obtaine an installed height of 33.5mm
REMARKS :
#
please contact Cat Cams
