7100209
sport
Toyota 1NZ-FE
I-4cyl 1.5L 16v DOHC (DTx/DTx)
intake
exhaust

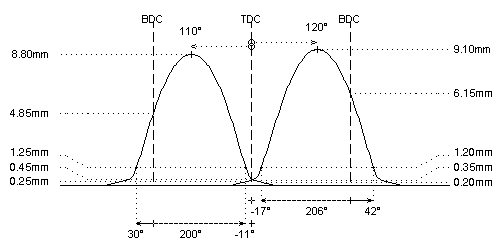

camshaft data:
lash ramp
: 0.20mm
0.25mm
duration @ 0.1mm
: 250°
235°
duration @ 1.0mm
: 205°
199°
valve lift
: 9.10mm
8.80mm
cam lift
: 9.10mm
8.80mm
lobe angle
: 120° (80°)
110°
timing @ 1.0mm
: -17° / 42°
30° / -11°
valve lift @ TDC
: 0.35mm (3.83mm)
0.45mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 17kg @ 32.4mm
: 17kg @ 32.4mm
max. load / lift
: 32kg @ 9.0mm
: 32kg @ 9.0mm
REMARKS :
REMARKS :
