hot street - dirt track
Citroën TU5JP4S 125hp
I-4cyl 1.6L 16v DOHC (DTH/DTH)
Save to PDF
intake
exhaust

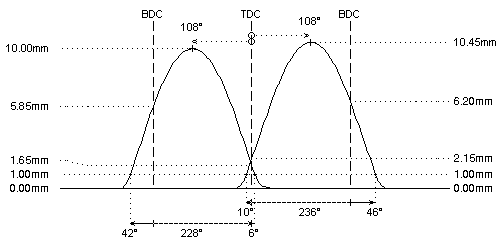

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 262°
256°
duration @ 1.0mm
: 236°
228°
valve lift
: 10.45mm
10.00mm
cam lift
:
lobe angle
: 108°
108°
timing @ 1.0mm
: 10° / 46°
42° / 6°
valve lift @ TDC
: 2.15mm
1.65mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99311/s
: View 99311/s
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: View PAC-S90015
: View PAC-S90015
interior spring
fitted load / length
: 31kg @ 37.5mm
: 31kg @ 37.5mm
max. load / lift
: 79kg @ 12.5mm
: 79kg @ 13.0mm
REMARKS :
REMARKS :
#
Distance between valve and piston should be 1.0mm at least:
-
check 5-15° after TDC on intake
-
check 5-15° before TDC on exhaust
Machine pistons if required. Wrong installation can cause severe engine damage!
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
