Volkswagen BYT, CABA, CDAA, CCZA EA888 TSI 1.8 gen1 VVT in
I-4cyl 1.8L 16v DOHC (RPRH/RPRH)
Save to PDF
intake
exhaust

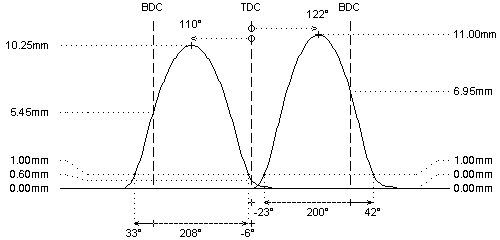

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 246°
255°
duration @ 1.0mm
: 199°
207°
valve lift
: 11.00mm
10.25mm
cam lift
: 6.55mm
6.10mm
lobe angle
: 122° (62°)
110°
timing @ 1.0mm
: -23° / 42°
33° / -6°
valve lift @ TDC
: 0.00mm (6.40mm)
0.60mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 30kg @ 36.5mm
: 32kg @ 35.9mm
max. load / lift
: 72kg @ 11.0mm
: 72kg @ 10.4mm
REMARKS :
REMARKS :
#
Camshafts are based on standard camshafts:
- intake 06H (109) 101D
- exhaust 06H 109 102 AD
Compatible with EA888 1.8L and 2.0L engines with following properties:
- intake VVT only
- cylinderhead with separate exhaust ports and exhaust manifold
- WITHOUT switching valve lift system (AVL) on exhaust camshaft
#
Camshaft set includes vvt sprocket on the intake cam, and adjustable sprocket on the exhaust cam.
