4603511
sport
Opel Z16LER 1.6L turbo (Z16LER, Z16LET, Z16LEL)
I-4cyl 1.6L 16v DOHC (DTx/DTx)
intake
exhaust

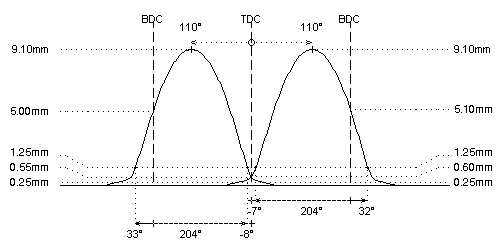

camshaft data:
lash ramp
: 0.23mm
0.23mm
duration @ 0.1mm
: 244°
244°
duration @ 1.0mm
: 205°
205°
valve lift
: 9.10mm
9.10mm
cam lift
: 9.10mm
9.10mm
lobe angle
: 110°
110°
timing @ 1.0mm
: -7° / 32°
33° / -8°
valve lift @ TDC
: 0.60mm
0.55mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 18kg @ 35.0mm
: 18kg @ 35.0mm
max. load / lift
: 48kg @ 10.0mm
: 48kg @ 10.0mm
REMARKS :
REMARKS :
#
-Compatible with Z16LER, Z16LET, Z16LEL
-Exhaust cam trigger needs to be transferred from oem camshaft
#
ECU reprogramming required
