4603510
sport
Opel Z16LER 1.6L turbo (Z16LER, Z16LET, Z16LEL)
I-4cyl 1.6L 16v DOHC (DTx/DTx)
intake
exhaust

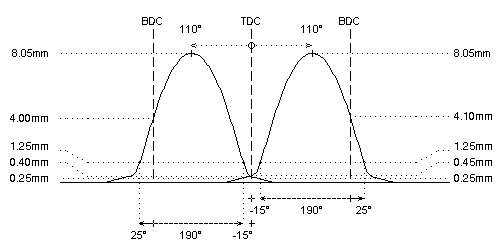

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 233°
233°
duration @ 1.0mm
: 190°
190°
valve lift
: 8.05mm
8.05mm
cam lift
: 8.05mm
8.05mm
lobe angle
: 110°
110°
timing @ 1.0mm
: -15° / 25°
25° / -15°
valve lift @ TDC
: 0.45mm
0.40mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 18kg @ 35.0mm
: 18kg @ 35.0mm
max. load / lift
: 48kg @ 10.0mm
: 48kg @ 10.0mm
REMARKS :
REMARKS :
#
-Compatible with Z16LER, Z16LET, Z16LEL
-Exhaust cam trigger needs to be transferred from oem camshaft
