7109603
sport
Toyota 2ZR-FE
I-4cyl 1.8L 16v DOHC
intake
exhaust

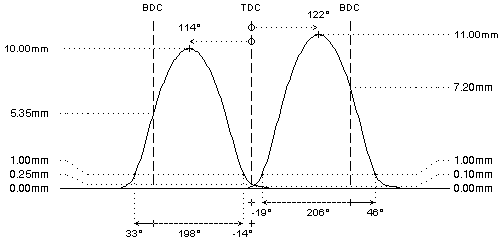

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 262°
254°
duration @ 1.0mm
: 207°
199°
valve lift
: 11.00mm
10.00mm
cam lift
: 6.60mm
6.00mm
lobe angle
: 122° (67°)
114° (74°)
timing @ 1.0mm
: -19° / 46°
33° / -14°
valve lift @ TDC
: 0.10mm (5.97mm)
0.25mm (4.21mm)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 23kg @ 38.5mm
: 23kg @ 38.5mm
max. load / lift
: 50kg @ 11.5mm
: 50kg @ 11.5mm
REMARKS :
REMARKS :
