7109602
hot street - dirt track
Toyota 2ZR-FE
I-4cyl 1.8L 16v DOHC
intake
exhaust

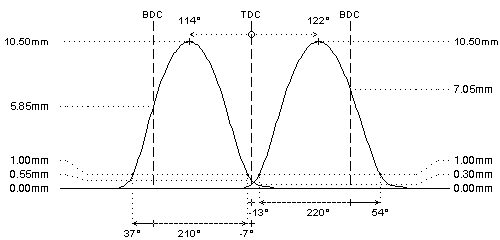

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 282°
268°
duration @ 1.0mm
: 221°
210°
valve lift
: 10.50mm
10.50mm
cam lift
: 6.30mm
6.25mm
lobe angle
: 122° (67°)
114° (74°)
timing @ 1.0mm
: -13° / 54°
37° / -7°
valve lift @ TDC
: 0.30mm (5.98mm)
0.55mm (4.81mm)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 23kg @ 38.5mm
: 23kg @ 38.5mm
max. load / lift
: 50kg @ 11.5mm
: 50kg @ 11.5mm
REMARKS :
REMARKS :
