REMARKS :
#

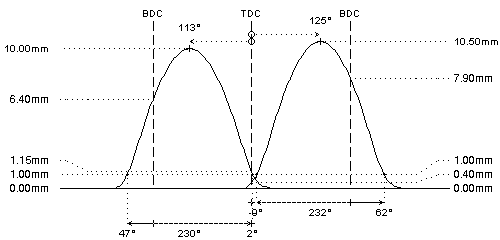

camshafts for use in V8 engines with 5 valves per cylinder:
- roller finger followers (1 intake and 1 exhaust follower per cylinder)
- external belt drive on exhaust camshafts
- internal connecting chain on intake camshafts (with VVT tensioner)
DOES NOT FIT LATER ENGINE WITH CHAIN DRIVE (such as BHF) !!!
#
The center intake valve is most critical for piston clearance. The distance between valve and piston should be 1.0mm at least:
-
check 5-15° after TDC on intake
-
check 5-15° before TDC on exhaust
If a VVT tensioner is used, the piston clearance should be checked at full advance.
Machine pistons if required. Wrong installation can cause severe engine damage!
#
STD valve springs can be used until STD rpm limit
#
for ATMO engines
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
