4000201
hot street - dirt track
Mercedes M102.962
I-4cyl 2.0L 8v SOHC (RPH/RPH)
intake
exhaust

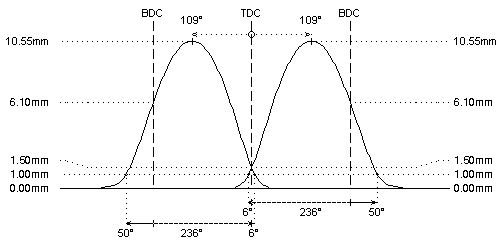

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 292°
292°
duration @ 1.0mm
: 236°
236°
valve lift
: 10.55mm
10.55mm
cam lift
: 6.90mm
6.90mm
lobe angle
: 109°
109°
timing @ 1.0mm
: 6° / 50°
50° / 6°
valve lift @ TDC
: 1.50mm
1.50mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
sports and turbo / compressor profiles available, please contact Cat Cams for specifications
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
