O.E.M.
Bmw M62 B44 286hp, non vanos
V-8cyl 4.4L 32v DOHC (DTH/DTH)
intake
exhaust

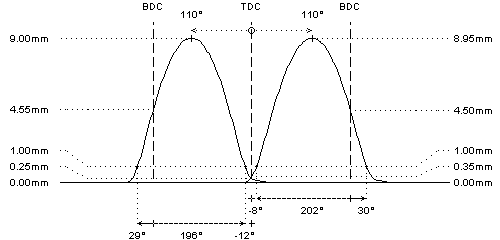

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 246°
240°
duration @ 1.0mm
: 202°
197°
valve lift
: 8.95mm
9.00mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: -8° / 30°
29° / -12°
valve lift @ TDC
: 0.35mm
0.25mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
- steel billet camshafts
- gundrilled for weight reduction
