3702302
sport
Mazda B6 NB (solid cam followers)
I-4cyl 1.6L 16v DOHC (DTs/DTs)
intake
exhaust

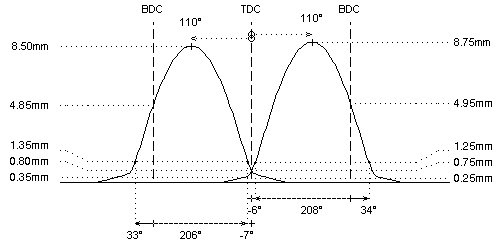

camshaft data:
lash ramp
: 0.25mm
0.35mm
duration @ 0.1mm
: 244°
248°
duration @ 1.0mm
: 208°
206°
valve lift
: 8.75mm
8.50mm
cam lift
: 8.75mm
8.50mm
lobe angle
: 110°
110°
timing @ 1.0mm
: -6° / 34°
33° / -7°
valve lift @ TDC
: 0.75mm
0.80mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 20kg @ 39.5mm
: 20kg @ 39.5mm
max. load / lift
: 57kg @ 10.0mm
: 57kg @ 10.0mm
REMARKS :
REMARKS :
#
For later B6 engine (MX5 NB) with 30mm solid cam followers (27mm shims on top)
#
ECU reprogramming advised
