1901407
hot street - dirt track
Fiat 176 A9.000 fire 16v (85hp)
I-4cyl 1.2L 16v DOHC (DTH/DTH)
intake
exhaust

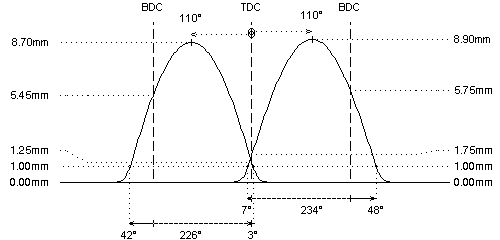

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 272°
259°
duration @ 1.0mm
: 235°
225°
valve lift
: 8.90mm
8.70mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: 7° / 48°
42° / 3°
valve lift @ TDC
: 1.75mm
1.25mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
:
O.E.M.
:
O.E.M.
fitted load / length
: 23kg @ 30.5mm
: 23kg @ 30.5mm
max. load / lift
: 53kg @ 8.7mm
: 53kg @ 8.7mm
REMARKS :
REMARKS :
#
ECU reprogramming required
