2702802
hot street - dirt track
Hyundai G4GF Beta 2
I-4cyl 2.0L 16v DOHC
intake
exhaust

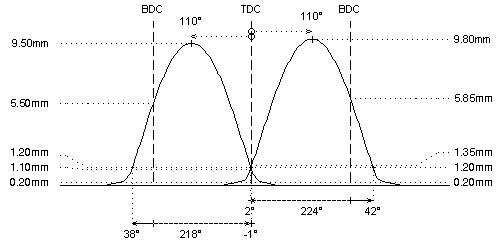

camshaft data:
lash ramp
: 0.20mm
0.20mm
duration @ 0.1mm
: 256°
248°
duration @ 1.0mm
: 224°
217°
valve lift
: 9.80mm
9.50mm
cam lift
: 9.80mm
9.50mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 2° / 42°
38° / -1°
valve lift @ TDC
: 1.35mm
1.10mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 25kg @ 37.2mm
: 27kg @ 36.5mm
max. load / lift
: 60kg @ 10.0mm
: 60kg @ 9.5mm
REMARKS :
REMARKS :
#
Only for G4GF Beta2 engines with mechanical cam followers with shims on top
#
ECU reprogramming required
