7109501
sport
Toyota 2GR-FE dual vvt
V-60°-6cyl 3.5L 24v QOHC
intake
exhaust

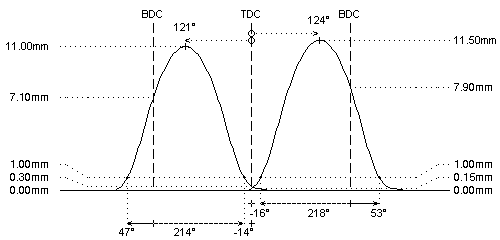

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 267°
263°
duration @ 1.0mm
: 217°
213°
valve lift
: 11.50mm
11.00mm
cam lift
: 6.70mm
6.55mm
lobe angle
: 124° (89°)
121° (81°)
timing @ 1.0mm
: -16° / 53°
47° / -14°
valve lift @ TDC
: 0.15mm (3.10mm)
0.30mm (3.94mm)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 25kg @ 37.0mm
: 25kg @ 37.0mm
max. load / lift
: 65kg @ 11.5mm
: 65kg @ 11.5mm
REMARKS :
#
Machining around the valve guide is required. Lower 2.5mm for placement of the lower retainer of the inner spring.
REMARKS :
