2502812
tarmac rally - race
Honda D16Z6 123 hp
I-4cyl 1.6L 16v SOHC
intake
exhaust

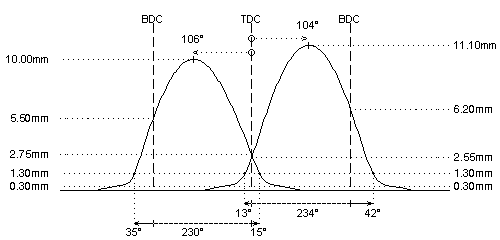

camshaft data:
lash ramp
: 0.28mm
: 0.28mm
duration @ 0.1mm
: 288°
(255)
: 285°
(285)
duration @ 1.0mm
: 235°
(217)
: 230°
(230)
valve lift
: 11.10mm
(8.90)
: 10.00mm
(10.00)
cam lift
: 6.75mm
(5.55)
: 5.55mm
(5.55)
lobe angle
: 104°
(106)
: 106°
(106)
timing @ 1.0mm
: 13° / 42°
: 35° / 15°
valve lift @ TDC
: 2.55mm
(1.40)
: 2.75mm
(2.75)
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
