O.E.M.
Ford ST180 Ecoboost
I-4cyl 1.6L 16v DOHC
intake
exhaust

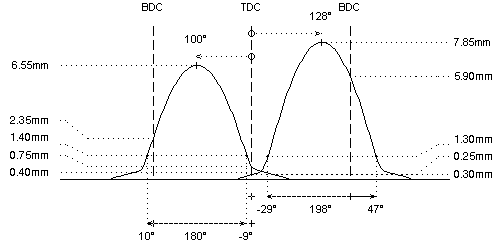

camshaft data:
lash ramp
: 0.30mm
0.40mm
duration @ 0.1mm
: 236°
218°
duration @ 1.0mm
: 198°
181°
valve lift
: 7.85mm
6.55mm
cam lift
: 7.85mm
6.55mm
lobe angle
: 128°
100°
timing @ 1.0mm
: -29° / 47°
10° / -9°
valve lift @ TDC
: 0.25mm
0.75mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 19kg @ 35.8mm
: 19kg @ 35.8mm
max. load / lift
: 35kg @ 10.0mm
: 35kg @ 10.0mm
REMARKS :
REMARKS :
