2290324
turbo conversion
Ford Zeta 1.8 - 2.0L, mech (blacktop)
I-4cyl 2.0L 16v DOHC (DTs/DTs)
intake
exhaust

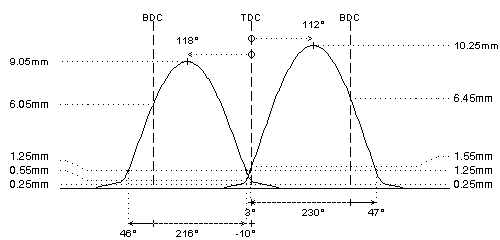

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 256°
262°
duration @ 1.0mm
: 230°
216°
valve lift
: 10.25mm
9.05mm
cam lift
: 10.25mm
9.05mm
lobe angle
: 112°
118°
timing @ 1.0mm
: 3° / 47°
46° / -10°
valve lift @ TDC
: 1.55mm
0.55mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
99312/H
:
99312/H
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
PAC-E99862
:
PAC-E99862
interior spring
fitted load / length
: 29kg @ 35.0mm
: 29kg @ 35.0mm
max. load / lift
: 80kg @ 12.0mm
: 80kg @ 12.0mm
REMARKS :
REMARKS :
#
for 2nd generation engines with mechanic tappets 30mm / shim 27.5mm on top, tripple groove valves and conical valve springs (from '98)
#
ECU reprogramming required
#
for TURBO conversion (atmospheric to turbo)
