turbo conversion
Toyota 4A-GE
I-4cyl 1.6L 16v DOHC (DTs/DTs)
intake
exhaust

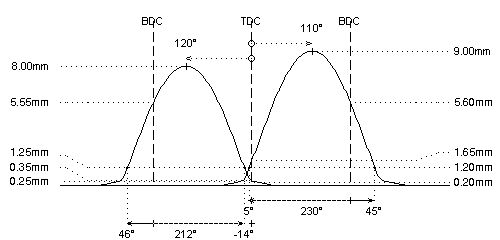

camshaft data:
lash ramp
: 0.20mm
0.25mm
duration @ 0.1mm
: 262°
238°
duration @ 1.0mm
: 230°
212°
valve lift
: 9.00mm
8.00mm
cam lift
: 9.00mm
8.00mm
lobe angle
: 110°
120°
timing @ 1.0mm
: 5° / 45°
46° / -14°
valve lift @ TDC
: 1.65mm
0.35mm
parts setup:
cam wheels :
:
CTTO018
:
CTTO018
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 15kg @ 35.0mm
: 16kg @ 34.0mm
max. load / lift
: 45kg @ 9.0mm
: 45kg @ 8.0mm
REMARKS :
REMARKS :
#
ECU reprogramming required
#
for TURBO conversion (atmospheric to turbo)
#
check std valve spring setup for coil bind length and use valve spring kit if required
