7102703
hot street - dirt track
Toyota 2ZZ-GE VVTL-i
I-4cyl 1.8L 16v DOHC (RP/RP)
intake
exhaust

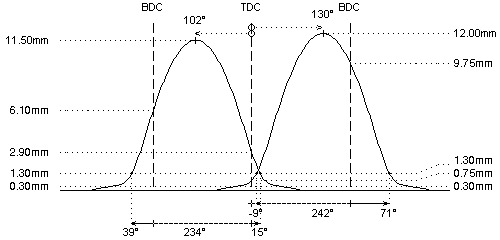

camshaft data:
lash ramp
: 0.30mm
0.30mm
duration @ 0.1mm
: 294°
286°
duration @ 1.0mm
: 242°
234°
valve lift
: 12.00mm
11.50mm
cam lift
: 6.85mm
6.60mm
lobe angle
: 130°
102°
timing @ 1.0mm
: -9° / 71°
39° / 15°
valve lift @ TDC
: 0.75mm
2.90mm
parts setup:
cam wheels :
:
:
follower
:
INFO
:
INFO
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
99527/s
:
99527/s
lower retainer
:
99528/O
:
99528/O
exterior spring
:
PAC-E19864
:
PAC-E19864
interior spring
:
PAC-I19864
:
PAC-I19864
fitted load / length
: 28kg @ 34.0mm
: 28kg @ 34.0mm
max. load / lift
: 89kg @ 14.5mm
: 89kg @ 14.5mm
REMARKS :
#
Only use Ferrea Roller rockers with these camshafts.
#
Use valve locks of Renault Clio RS
REMARKS :
#
Camshafts to be used with Ferrea Roller rockers only.
