turbo conversion
Mercedes M113.960 .960 .962 .963 .964 .965 .966 .967 .968 .969 .971
V-8cyl 5.0L 24v SOHC (RPRH/RPRH)
Save to PDF
intake
exhaust

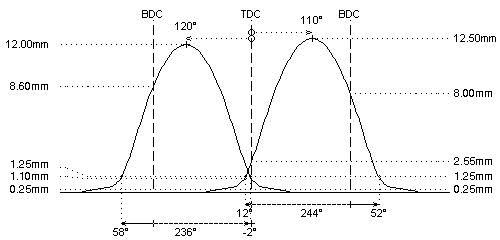

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 306°
298°
duration @ 1.0mm
: 244°
236°
valve lift
: 12.50mm
12.00mm
cam lift
: 8.75mm
8.35mm
lobe angle
: 110°
120°
timing @ 1.0mm
: 12° / 52°
58° / -2°
valve lift @ TDC
: 2.55mm
1.10mm
parts setup:
cam wheels :
:
:
follower
: View INFO
: View INFO
valve lash
: View TS103
: View TS103
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99572
: View 99572
lower retainer
: View 99593/O
: View 99593/O
exterior spring
: View PAC-E92009
: View PAC-E92009
interior spring
: View PAC-I92009
: View PAC-I92009
fitted load / length
: 35kg @ 34.0mm
: 35kg @ 34.0mm
max. load / lift
: 104kg @ 14.0mm
: 104kg @ 14.0mm
REMARKS :
#
machining of cylinder head required
#
Machining of rocker arms is required M113_solid_lifter_conversion_instructions.gif :
#
remove inner plunger from hydraulic element and replace with lash adjustment shim.
REMARKS :
#
Mechanical conversion requires machining of the rocker arms!
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
#
for TURBO conversion (atmospheric to turbo)
