tarmac rally - race
Mercedes M113.960 .960 .962 .963 .964 .965 .966 .967 .968 .969 .971
V-8cyl 5.0L 24v SOHC (RPRH/RPRH)
Save to PDF
intake
exhaust

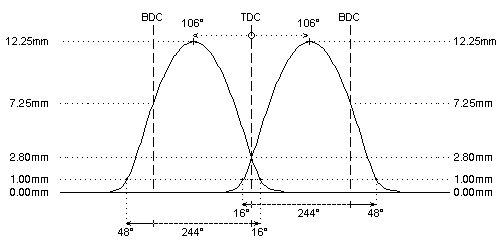

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 306°
306°
duration @ 1.0mm
: 244°
244°
valve lift
: 12.25mm
12.25mm
cam lift
: 8.55mm
8.55mm
lobe angle
: 106°
106°
timing @ 1.0mm
: 16° / 48°
48° / 16°
valve lift @ TDC
: 2.80mm
2.80mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99572
: View 99572
lower retainer
: View 99593/O
: View 99593/O
exterior spring
: View PAC-E92009
: View PAC-E92009
interior spring
: View PAC-I92009
: View PAC-I92009
fitted load / length
: 35kg @ 34.0mm
: 35kg @ 34.0mm
max. load / lift
: 104kg @ 14.0mm
: 104kg @ 14.0mm
REMARKS :
#
machining of cylinder head required
REMARKS :
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
