4003603
sport
Mercedes M113.960 .960 .962 .963 .964 .965 .966 .967 .968 .969 .971
V-8cyl 5.0L 24v SOHC (RPRH/RPRH)
Save to PDF
intake
exhaust

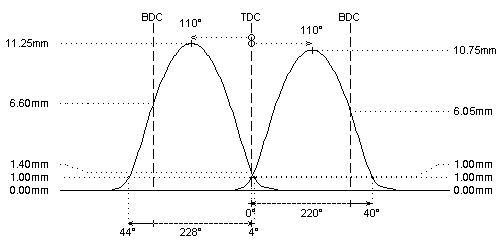

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 282°
290°
duration @ 1.0mm
: 220°
228°
valve lift
: 10.75mm
11.25mm
cam lift
: 7.50mm
7.85mm
lobe angle
: 110°
110°
timing @ 1.0mm
: -0° / 40°
44° / 4°
valve lift @ TDC
: 1.00mm
1.40mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99572
: View 99572
lower retainer
: View 99593/O
: View 99593/O
exterior spring
: View PAC-E92009
: View PAC-E92009
interior spring
: View PAC-I92009
: View PAC-I92009
fitted load / length
: 35kg @ 34.0mm
: 35kg @ 34.0mm
max. load / lift
: 104kg @ 14.0mm
: 104kg @ 14.0mm
REMARKS :
#
machining of cylinder head required
REMARKS :
#
OEM data for M113.960 .961 .962 .963 .964 .965 .966 .967 .968 .969 .971
camshaft partnumber:
A113 050 32 01
A113 050 33 01
#
ECU reprogramming advised
