4003601
sport
Mercedes M113.960 .960 .962 .963 .964 .965 .966 .967 .968 .969 .971
V-8cyl 5.0L 24v SOHC (RPRH/RPRH)
intake
exhaust

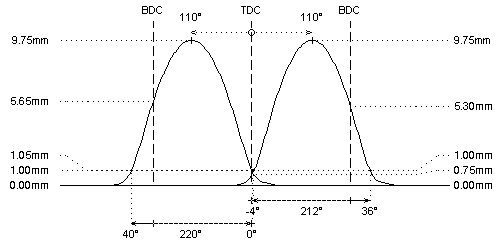

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 274°
282°
duration @ 1.0mm
: 212°
220°
valve lift
: 9.75mm
9.75mm
cam lift
: 6.75mm
6.75mm
lobe angle
: 110°
110°
timing @ 1.0mm
: -4° / 36°
40° / -0°
valve lift @ TDC
: 0.75mm
1.05mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 41kg @ 38.8mm
: 41kg @ 38.8mm
max. load / lift
: 75kg @ 9.5mm
: 75kg @ 9.5mm
REMARKS :
REMARKS :
#
OEM data for M113.960 .961 .962 .963 .964 .965 .966 .967 .968 .969 .971
camshaft partnumber:
A113 050 32 01
A113 050 33 01
