hot street - dirt track
Citroën XU7JB 109hp
I-4cyl 1.8L 16v SOHC
intake
exhaust

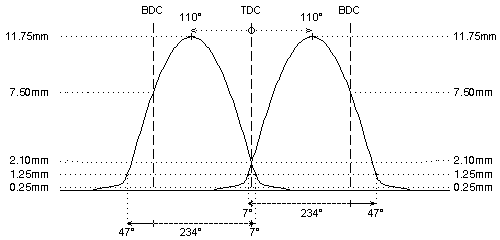

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 278°
278°
duration @ 1.0mm
: 234°
234°
valve lift
: 11.75mm
11.75mm
cam lift
: 11.75mm
11.75mm
lobe angle
: 110°
110°
timing @ 1.0mm
: 7° / 47°
47° / 7°
valve lift @ TDC
: 2.10mm
2.10mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
